High-definition optical alignment system(50X)
Manual X- and Y-axis optics positioning
Automated Z-axis for removal, placement, soldering
Micrometer-adjust X-, Y-, and Ø-axis lead-to-pad alignment
Three thermocouple inputs
380*290mm IR Bottom heater

FEATURES

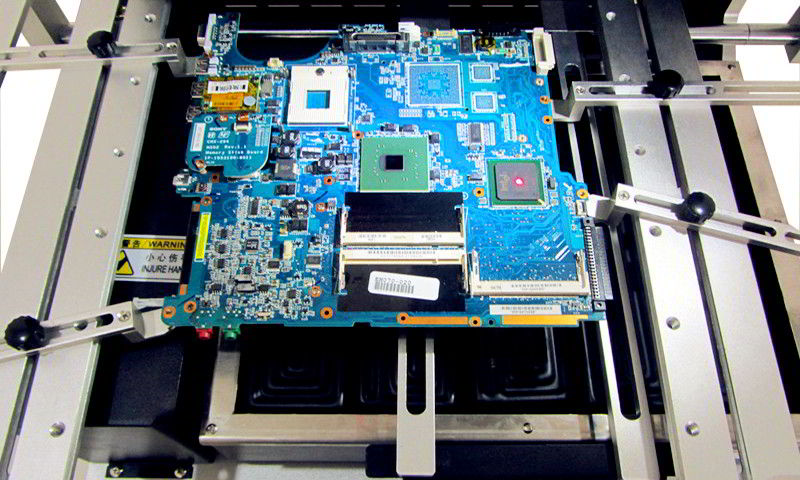

- Easily-adjusted PCB positioning bracket

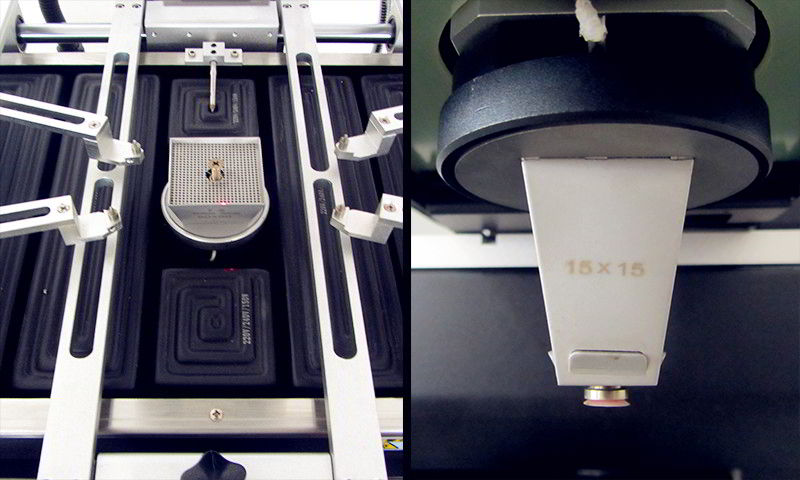

- Independent three-zone temperature control system

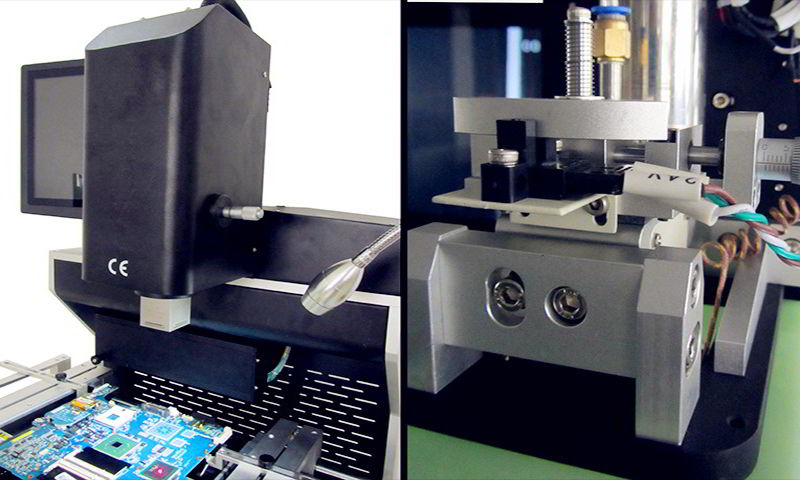

- Integrated design for upper temperature zone

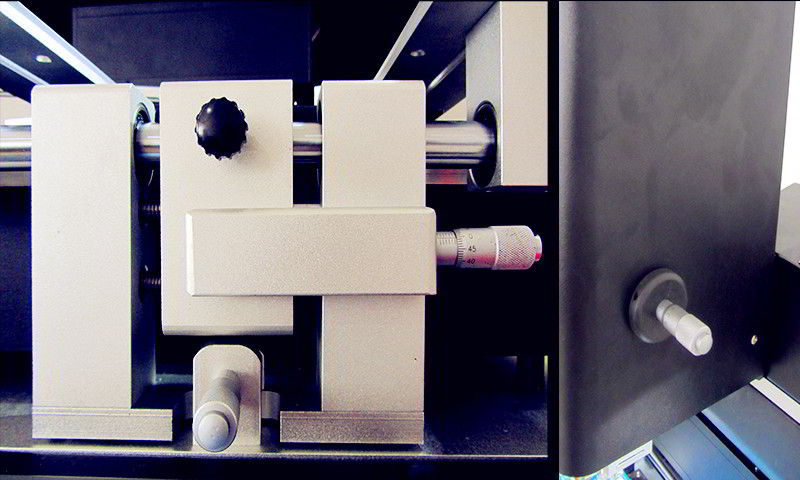

- Micrometer is used to realize accurate X/Y-axis and R-angle alignment

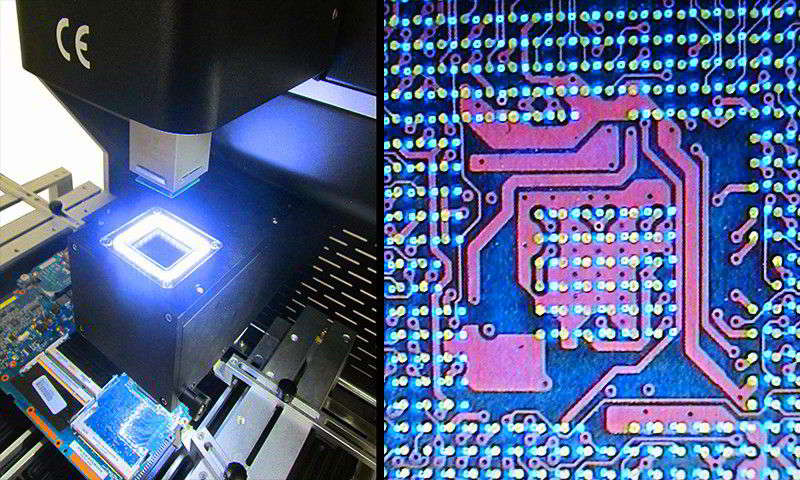

- Accurate optical-alignment system
- K-type closed-loop thermo-couple controller

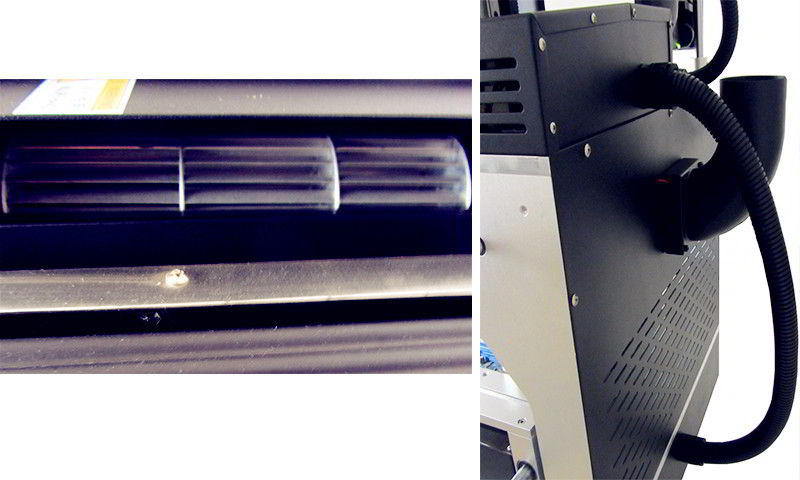

- Cooling and exhausting systems
- Multi-function humanized operating system
- Self-defined temperature curve unit
