The CamZ is a handheld digital magnifier, providing ultimate convenience for a wide range of imaging tasks. Magnify, inspect and capture images on the go, with a simple touch of a button.
Key Benefits and Features
- Adjustable magnifications 4x -14x
- Portable inspection and documentation
- Store up to 100 images. USB connectivity
- Ergonomically positioned buttons
- Ideal for variety of roving inspection tasks
- Controllable LED illumination optimised for magnified imaging
- Simple X,Y on-screen dimensioning, with cursor & grid functions
With the CamZ, magnify, inspect and capture images where you want, when you want!

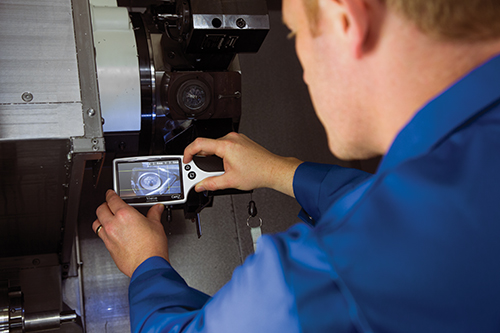

The CamZ is ideal for inspectors on the move, enabling operators to document faults and inspecting immobile subjects with ease.
Documenting faults and inspection of immobile subjects

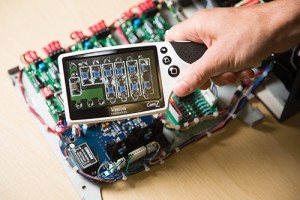

Inspecting electronics, including cable connections within broadband cabinets
Inspection subjects in dark or hard to reach areas
Within secure environments where company’s policy disallows the use of mobile phones
Quick parts documentation and/or training and quality assurance
Inspection of sterilised medical equipment and medical devices
Dental prosthetics and smile evaluation for cosmetic dental consultation
Automotive, aviation, watchmaking, general manufacturing and low vision magnification aid
Imaging and Documentation
Easily switch between image and live camera modes to easily compare specifications and identify product faults in situ. Features image freeze, image save and recall options.
The CamZ features a flip out leg to aid stability at high magnification. Located around the lens on the underside, simply flip it out fully to help maintain the ideal distance from the item you are viewing. Click it back in place when not in use.
Unlike a digital camera, CamZ’s dual LED illumination is optimised for magnified imaging, so you can always see the subject – no glare, no reflection.
To facilitate viewing objects where reflections may be an issue, the lighting can be cycled through three settings. The brightness of the LED’s can also be adjusted to optimise viewing.
|Display||4.3" diagonal (109mm) high resolution colour display|
|Magnification||4x - 14x (Far focus: 4x, 5x and 8x; Near focus: 7x, 9x and 14x)|
|Sensor||Video 30 frames per second|
|Illumination||Dual LED illumination, optimised for magnified imaging.|
|Dimension grids||Simple X,Y on-screen dimensioning, with cursor & grid|
|Image capture||480 x 272 Bitmap format, with date stamp. 100 images stored|
|PC connection||Micro USB connection for image download and charging|
|Battery||Lithium ion, 5 hour continuous operation time|
|Charge time||4 hours, via USB|
|Supported OS||Windows 2K/ME/XP/Vista/7, Apple Mac OSx and Linux|
|Dimensions||200(l) x 80(h) x 30(d)mm|
